1000A 50mV Corea type Voltmeter Ammeter DC current Manganin shunt resistor

1. Use: The interchangeable shunts are used to multiply the measuring range of current of measuring instruments. 2. Application:For Telecommunications equipment、Electric cars、Aerospace、Charging station、Electroplating Power Equipment、Instrument and meter, Dc power system, etc..
Brand
NQQK
Color
Black and Silver
Current rating
100A-2000A
Voltage drop
50mV,55mV,60mV,100mV
Accuracy class
0.2%/0.25%/0.5%
Material
Copper with nickel plated
Overload capacity
120% of rated current for 2hour
Function
Are used to multiply the measuring range of curren
Application
Use for DC digital Amp Meter

FL-CR Korea Korean 1200A 50mV DC Electric current Shunt Resistors for Amp Panel Meter Currect Monitor

Product Description

nqqk shunt

There are too many models of the shunt, please consult before place order. thank you.

The catalouge will be sent you check.



The main technical parameters:
1, accuracy level: 2 ~ 4000A; 0.5: 5000 ~ 10000A; 1 level.
2, the ambient conditions: -40 ~ +60 ℃, relative humidity ≤ 95% (35 ℃).
3, overload performance: rated current 120%, 2 hours.
4, the voltage drop: 50mV60mV70mV100mV
5, the load under the heat: temperature stability tends to change, the rated current 50A the following does not exceed 80 ℃; rated current 50A or more does not exceed 120 ℃.



Precautions:
(Or copper) and the shunt connection is not allowed to have artificial contact resistance, the sampling point of the secondary voltage can not be sampled from the non-sampling point.

Actual use of the current (long) is recommended not to exceed 80% of rated current.



Color Black and Silver
Current rating 10A-3000A
Voltage drop 50mV,60mV,75mV,100mV
Accuracy class 0.5/0.2
Material Copper with nickel plated
Overload capacity 120% of rated current for 2hr
Function are used to multiply the measuring range of current of measuring instruments.
Application Use for DC digital Amp Meter.

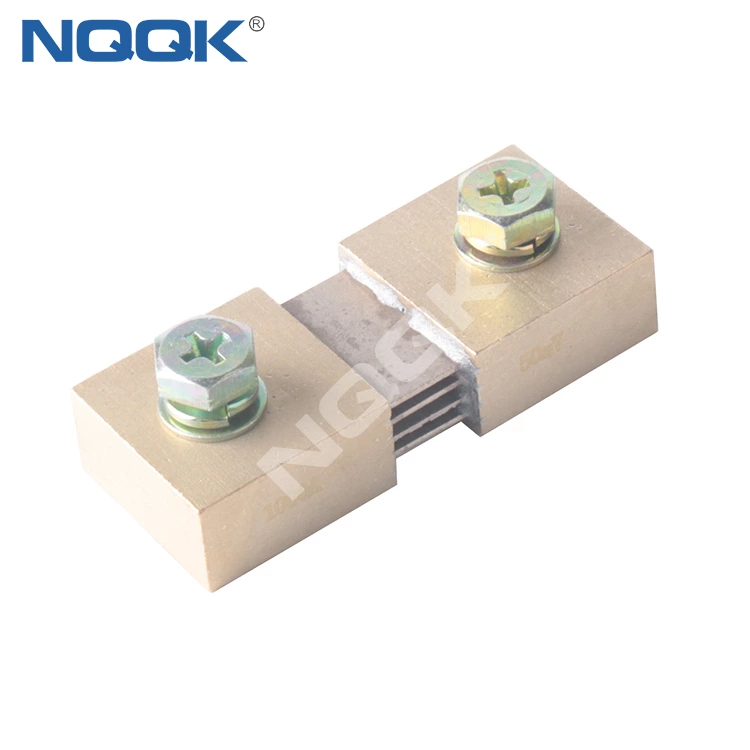

1CR 1000A shunt

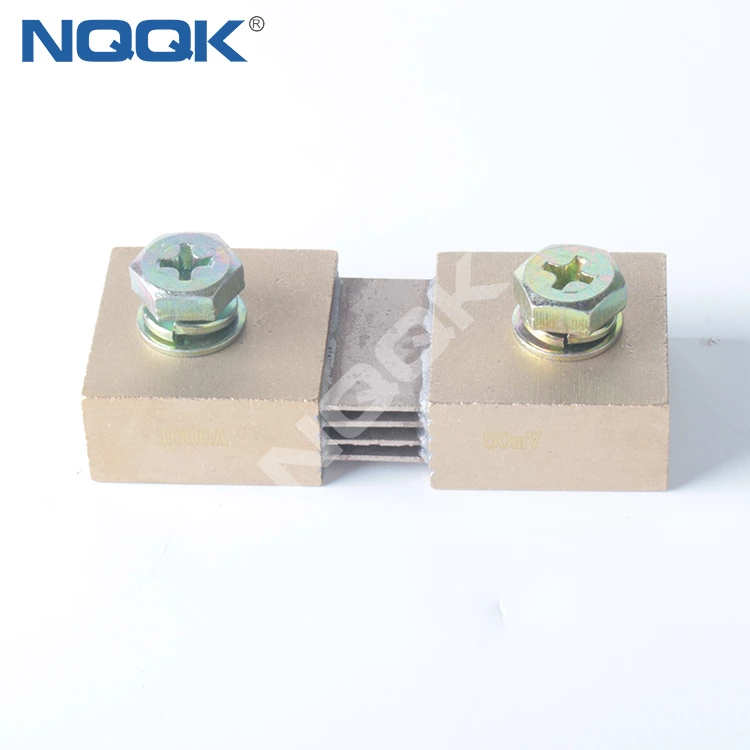

2CR 1000A shunt

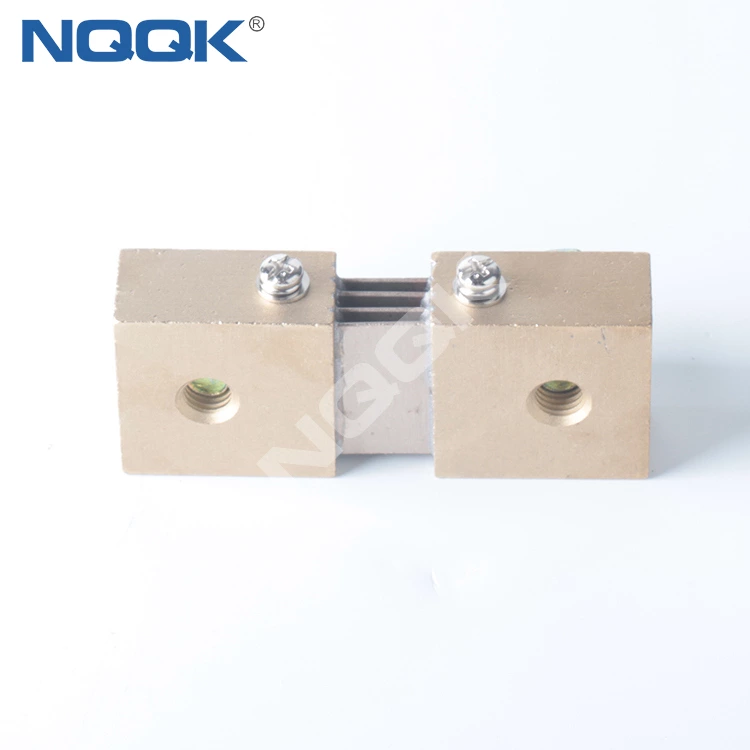

5CR 1000A shunt

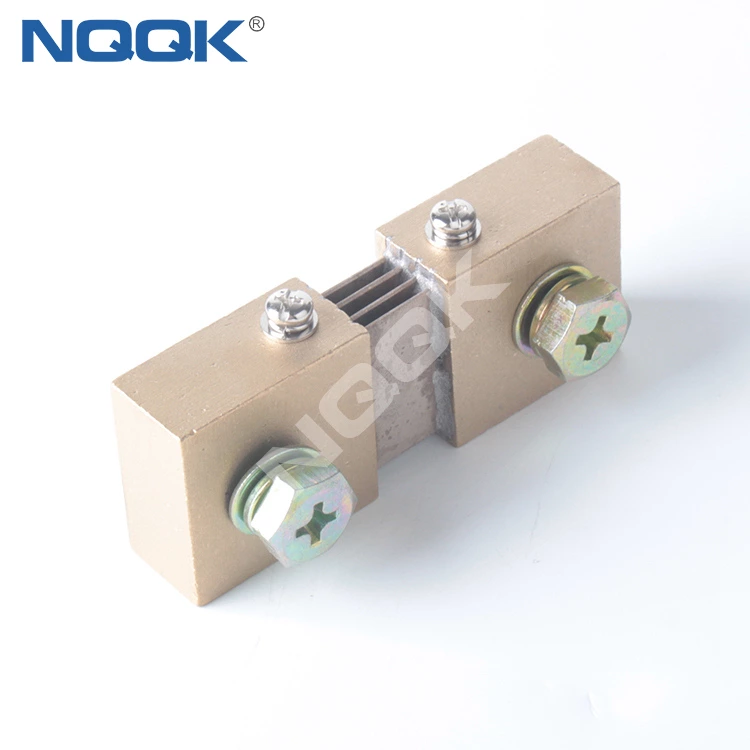

4CR 1000A shunt

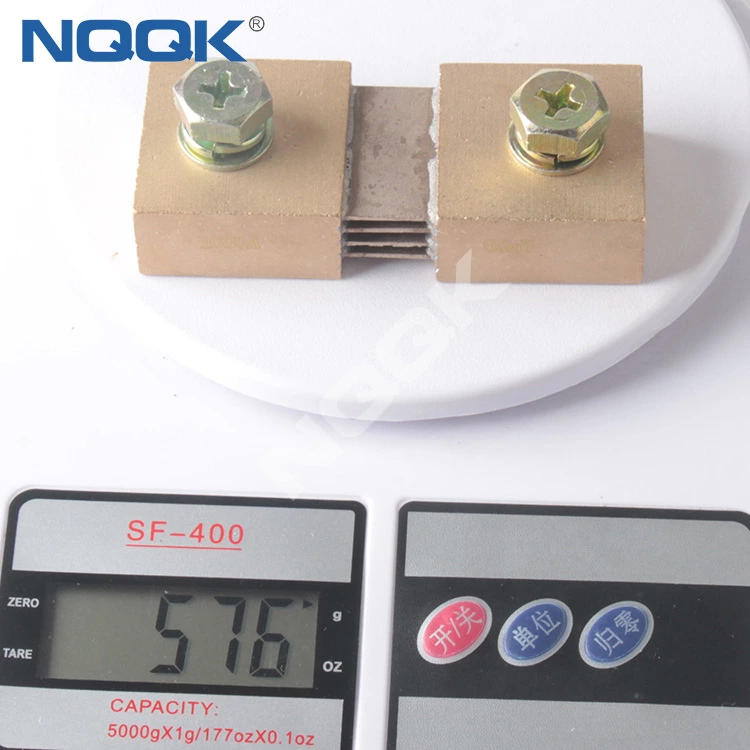

6CR 1000A shunt
