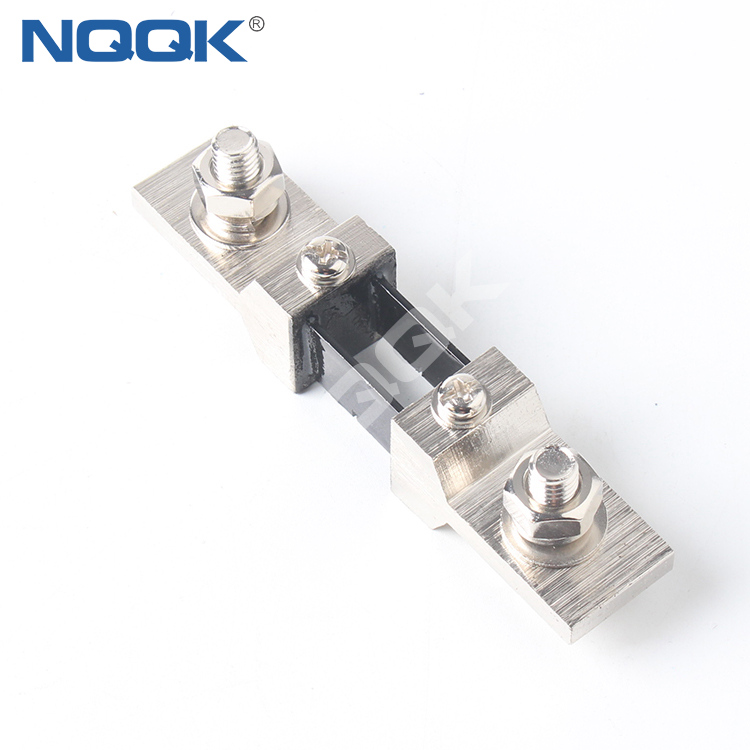

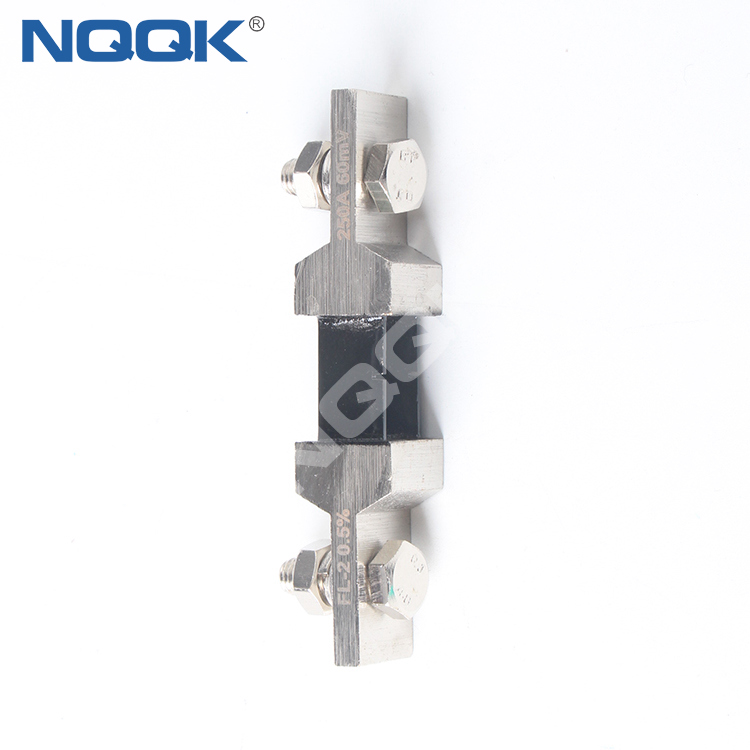

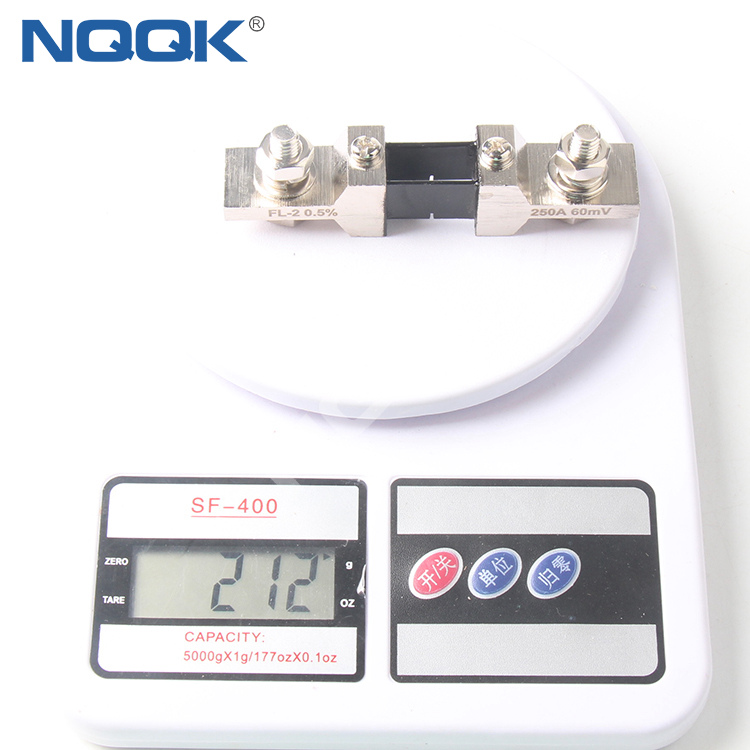

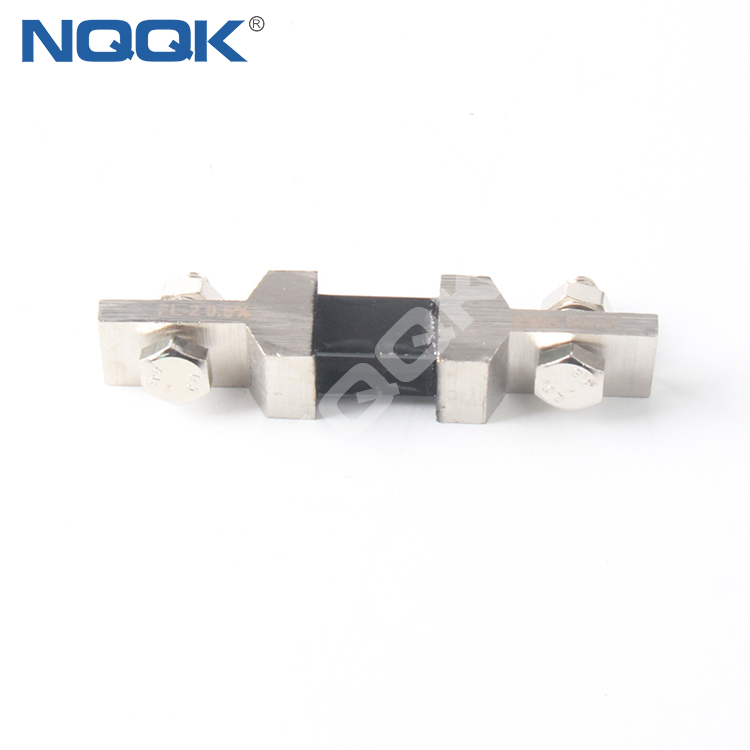

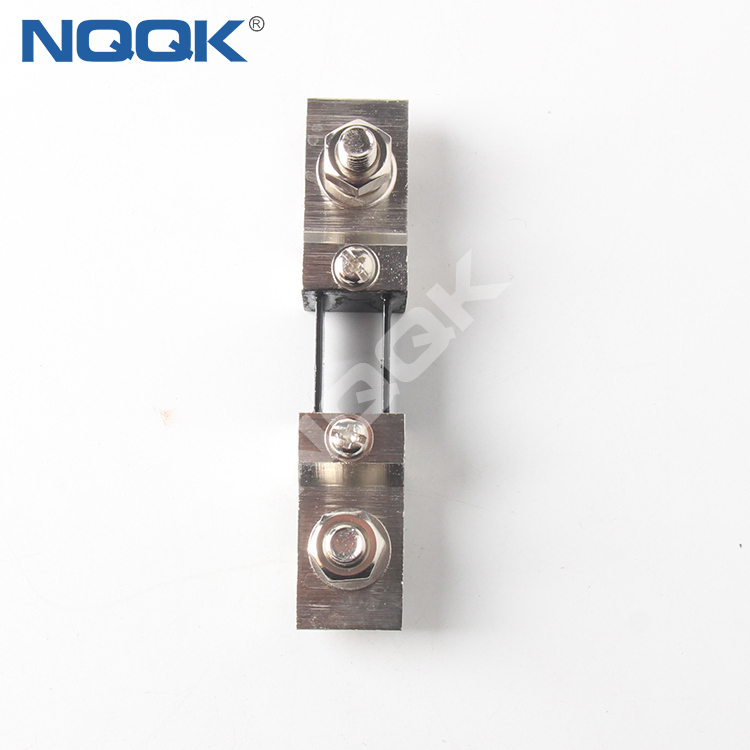

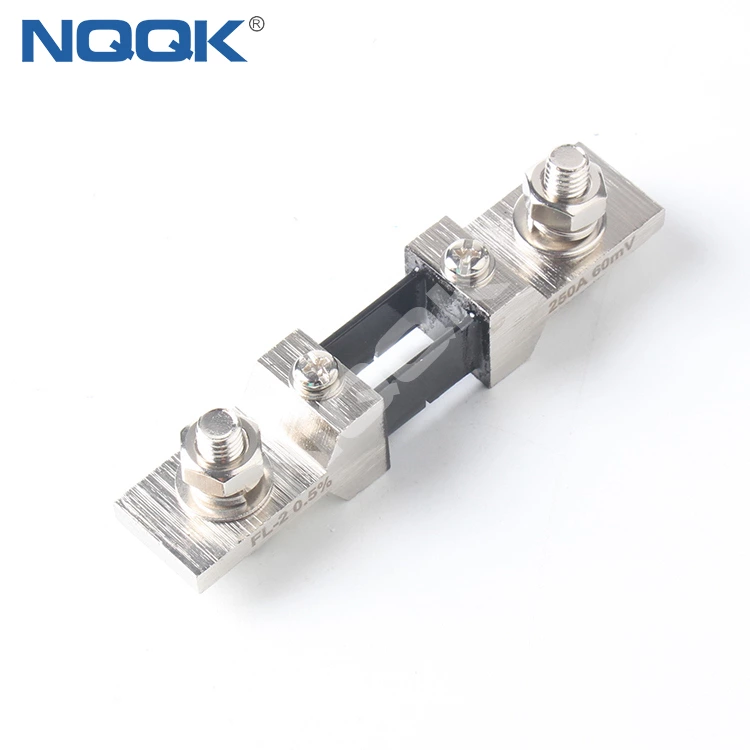

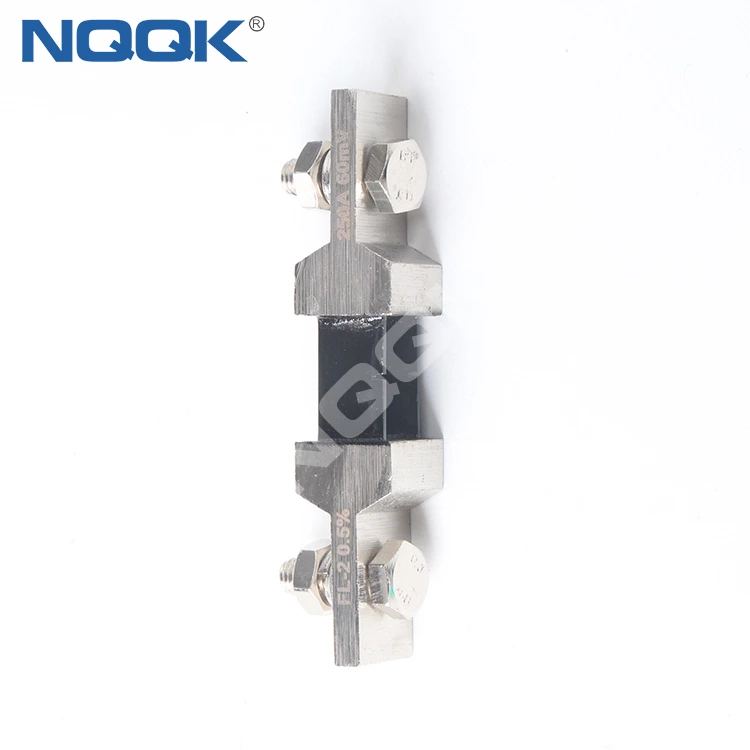

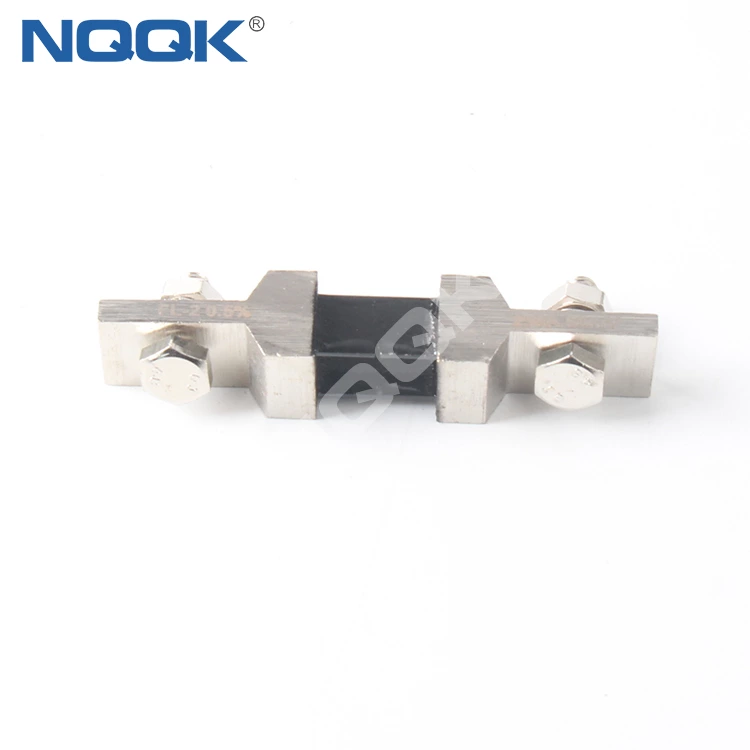

FL-2 DC 250A 60mV Electric DC current Shunt Resistors for welding machine
- Brand
- NQQK
FL-2 DC 250A 60mV Electric DC current Shunt Resistors for welding machine
FL-2 DC 500A 50mV Electric DC current Shunt Resistors for welding machine
Product Description
| PRODUCT PARAMETER | ||||||||
| Product name | Shunt | -40℃~60℃ | ||||||
| Product number | FL-2 | 1~4000A: 0.5 grade; 5000~15000: 1 grade | ||||||
| Overload performance | 120% of rated current | ≤95 (35℃) | ||||||
| Voltage drop | 75mv | 120% rated current value, 2 hours | ||||||
| Precautions | The cable (or copper bar) of the primary circuit of the shunt,No artificial contact resistance is allowed at the shunt, The sampling point of the secondary voltage cannot be from the non-sampling point. This fixed-value shunt is 0.5 grade, and the rated voltage drop is 275Ma. It is used in the DC circuit.Equipped with a 75mA limit magneto-electric series voltmeter,Expand the measuring current range of the instrument. |
|||||||
| Heat under load | After the temperature rise becomes stable, the rated current below 50A does not exceed 80°C; the rated current above 50A exceeds 120°C. | |||||||
| Secondary pressure drop | 50mv, 60mv, 75mv, 100mv, 150mv, 200mv, 300mv, etc., the default is 75mv | |||||||
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: 1-2 years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide
customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C,etc.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
