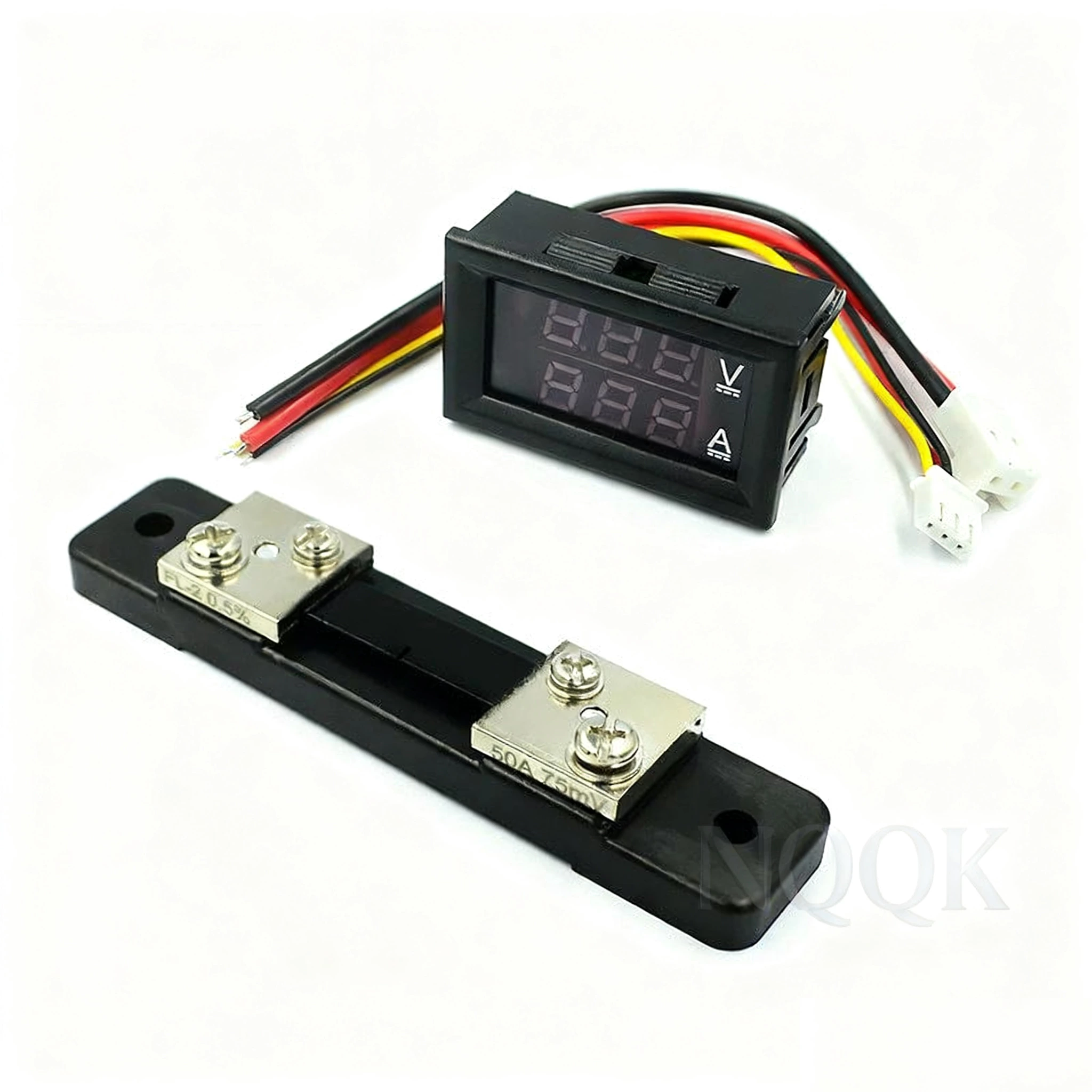

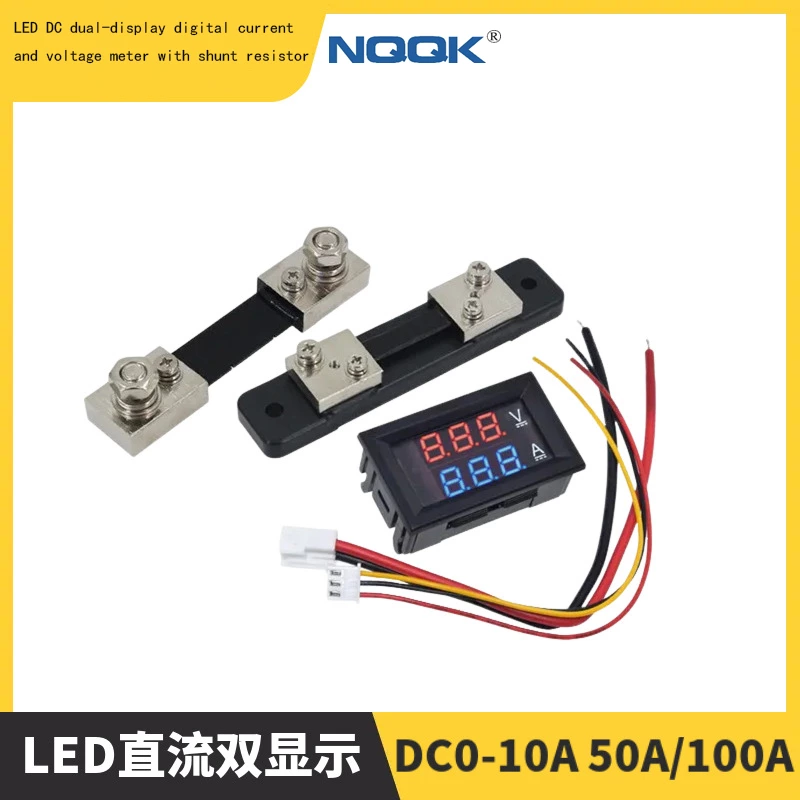

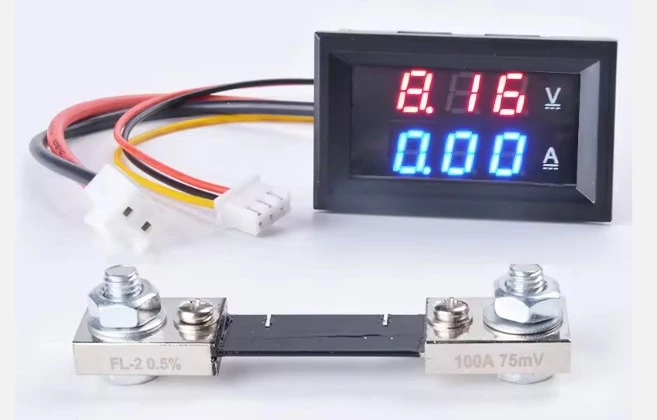

DC Digital Voltage Current Meter LCD Voltmeter Ammeter with DC Shunt
DC Digital Voltage Current Meter LCD Voltmeter Ammeter with DC Shunt Voltage measurement range 0.0V-100V Current Measurement Range 0-999mA，0-10A，0-50A,0-100A Power Supply Range DC4-30.0V Voltage error
- Brand
- NQQK
DC Digital Voltage Current Meter LCD Voltmeter Ammeter with DC Shunt
| Voltage measurement range | 0.0V-100V |
| Current Measurement Range | 0-999mA，0-10A，0-50A,0-100A |
| Power Supply Range | DC4-30.0V |
| Voltage error | 士0.1% |
| Current error | 士1% |
| External shunt specification | <75mΩ |
| Working current | <20mA |
| Refresh rate | About 300 milliseconds - times |
| Display mode | Dual three-digit 0.28" LED digital tube |
| Display color | Red + red, red + blue. Optional |
| Lead wire length | 15cm |
| Dimensions of the shape | 48mmx29mmx22 mm |
| Installation hole dimensions | 46 mmx 27 mm |
| Working temperature | 10℃~65℃ |
Notes:

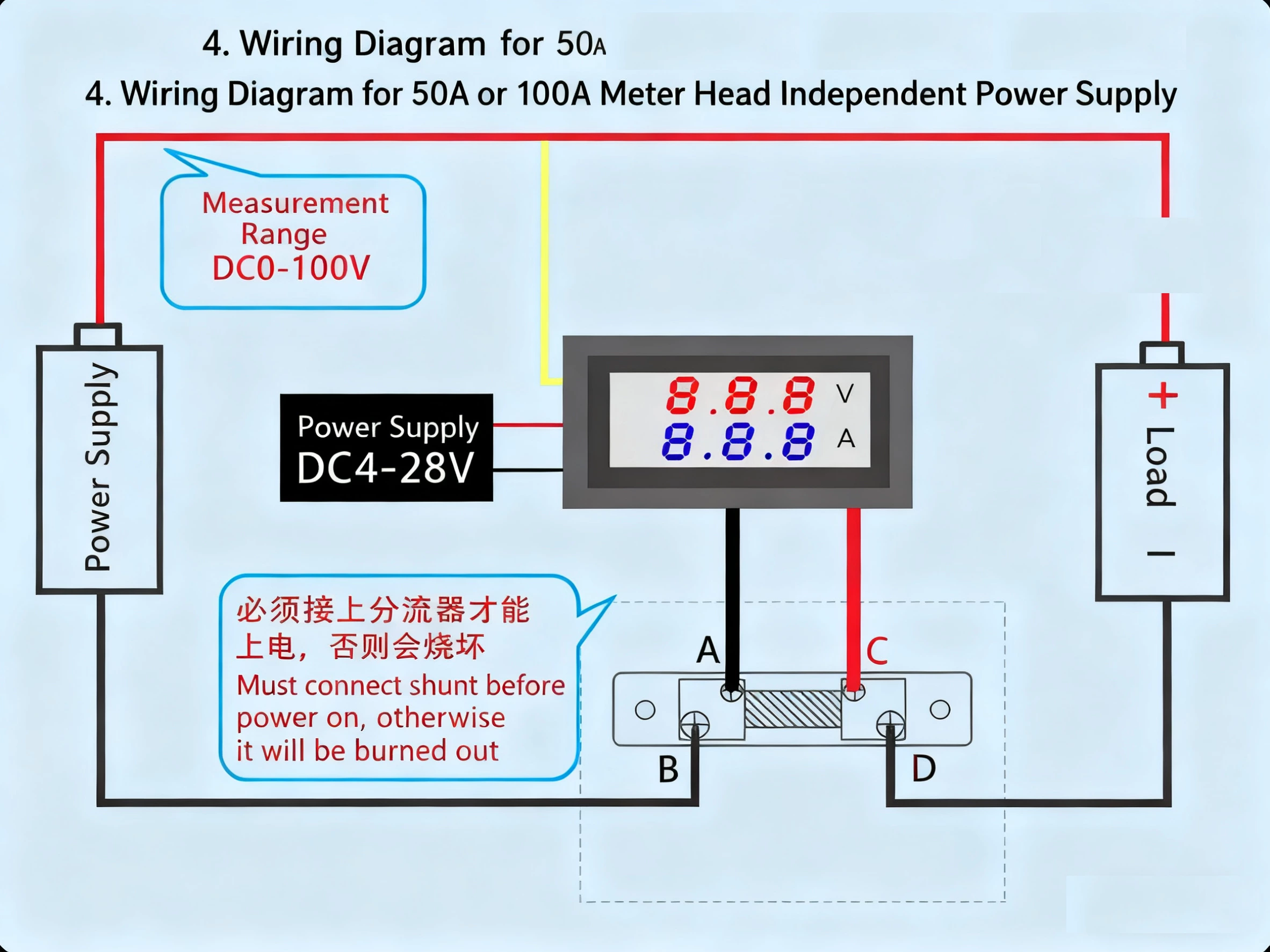

1. The meters with a range of 50A or 100A must be connected to a shunt before being powered on; otherwise, they will be damaged. Customers who have purchased the 50A or 100A models will use them. Customers who do not purchase the shunts should pay attention. Please refer to the wiring diagrams. If you don't know how to use it, please do not take pictures of our samples or request a refund. This is a small business. Please be gentle. 2. The power supply range of this meter is 4 to 30V (beyond this range will cause damage), and the measurement range is 0 to 100V.
