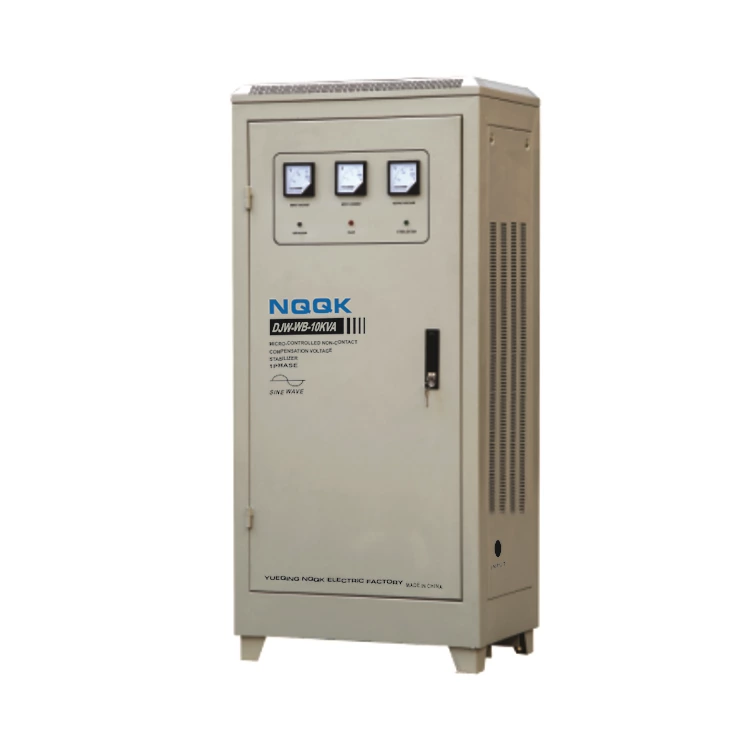

DJW-WB 5KVA / 10KVA / 15KVA Micro-controlled Non-contact Compensation 1Phase Series voltage regulator stabilizer
- Brand
- NQQK
1). Feature:
Integrating the advance duplex winding compensation mode、non-contact Switch and microcomputer controlled regulating
technology. It has the fea tures of high efficiency and energy-saving、 fast adjustment 、three phase automatic balanced
no mechanical malfunction or carbon brush wearing, also with the functions of delay、under/over voltage alarm and protection.
◆Adopting the advanced duplex winding compensation technology which ensure little waveform distortion.
◆Adopting one-chip computer to control the thyristor and shifting combination for timing compensation adjustment enable it to realize the
fast non-contact adjustment. Strong instantaneous overload capacity makes it available with various loads
◆Adopting one-chip computer split-phase control, it has the functions of delay starting-up, three-phase automatic balance add-
ition adjustment, display、alarm and protection of open-phase、overrun and malfunction etc.
2).Application:
Broadcast & Television system, Microwave telecommunication Unattended station, Industrial control system,
Computer system, Industrial equipment supporting, Elevator supporting etc. Occasions that requires regulated power source.
3).Specification:
Model | Rated Power | Output max | Package size | Qty per pkg |
(KVA) | current(A) | DxWxH(cm) | (unit) | |
DJW-WB-5KVA | 5 | 22 | 75×55×160 | 1 |
DJW-WB-10KVA | 10 | 45 | 75×55×160 | 1 |
DJW-WB-15KVA | 15 | 68 | 75×55×160 | 1 |
lnput voltage | 220V±20% or | |||
220V±30% (Optional) | ||||
Output voltage | 220V | |||
Accuracy of voltage | ±2.5% | |||
Efficiency | > 95% | |||
Response time | 0.2~0.5s optional | |||
Waveform distortion | ≤2% | |||
Frequency | 50Hz/60Hz | |||
Instant overloading capacity | 1.5-2 times of the rated current |
Our Services:
1. Prompt reply: Any inquiry or questions would be replied within 24 hours.
2. Quality Product: Manufacture company, each of the products is tested and calibrated.
3. Hospitality: Offer smiling service and your visiting is highly welcomed
4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.
Trade Information:
Trade Terms | FOB ,CIF ,CFR,EXW,DDP |
Payment terms | T/T,L/C,Western union,Paypal,Escrow,MoneyGram |
Payment conditions | 30% deposit in advance,70% balance before shipping. |
Delivery time | 3-7working days after deposit,2-4 working days for inventory |
Packing | Neutral carton,Wooden case for large size |
Shipping | By sea,by air and by express delivery |
