AVR Servo Type 1Phase Series

Products

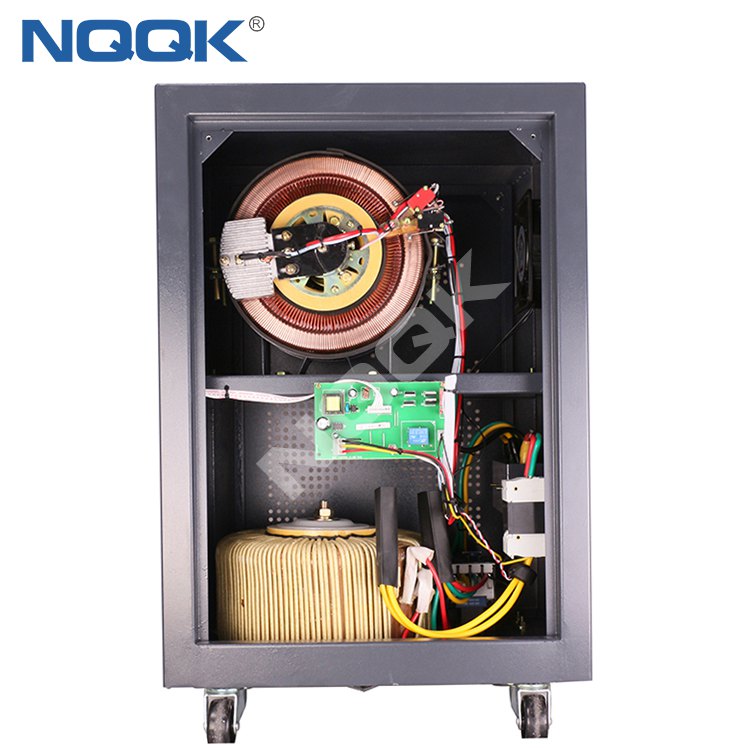

AVR 15KVA 15000W Servo Type 1Phase Series Voltage Regulator Voltage Stabilizer

1). Feature: The series product is a servo-motor type high accuracy household voltage stabilizer. Low power consumption, reliable work, high accuracy of stabilization, and good for use in regions wh
Brand
NQQK

1). Feature:

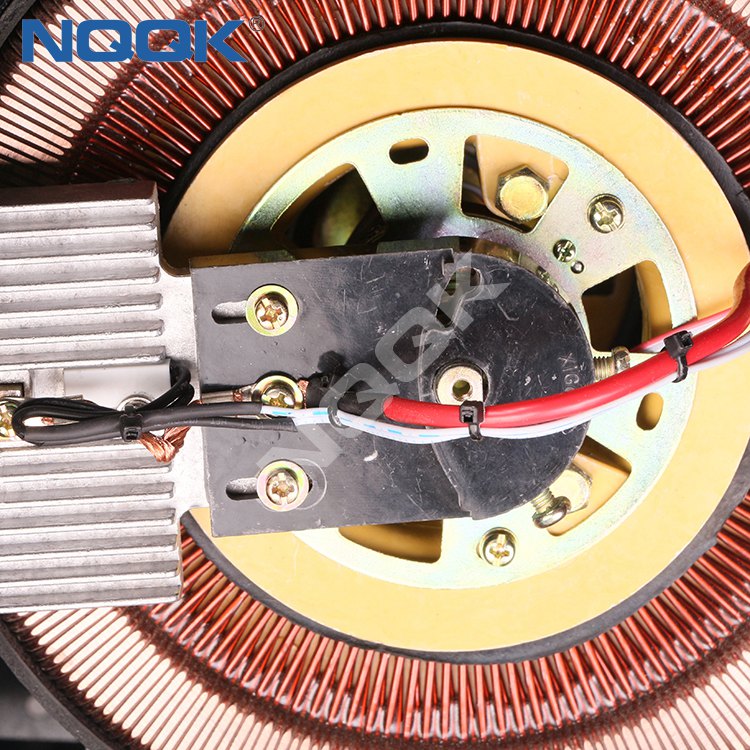

The series product is a servo-motor type high accuracy household voltage stabilizer. Low power consumption, reliable  work,
high accuracy of stabilization, and good for use in regions wher e the net voltage is much fluctuating.



2).Application:

Computer, Testing equipment, Lighting system, Communication system, Medical equipment, Industrial automatic equipment,

Stereo sound equipment and home appliance  etc.



3).Specification:

Brand NQQK
Product name Intelligent automatic AC voltage regulator Effectiveness ≥95%
Product number AVR-15KVA Temperature rise   <60 ° C
Operating Voltage Single-phase 140V-250V Waveform distortion No additional waveform distortion
Output voltage Single phase 220V ± 3% Load power factor 0.9
Output overvoltage protection 246V ± 4V Dielectric strength 2000V / min without flashover, breakdown phenomenon
frequency 50Hz / 60Hz Insulation resistance ≥2 MΩ
Net weight of the machine 55KG Adjust the time <1 second (when the input voltage changes by 10%)

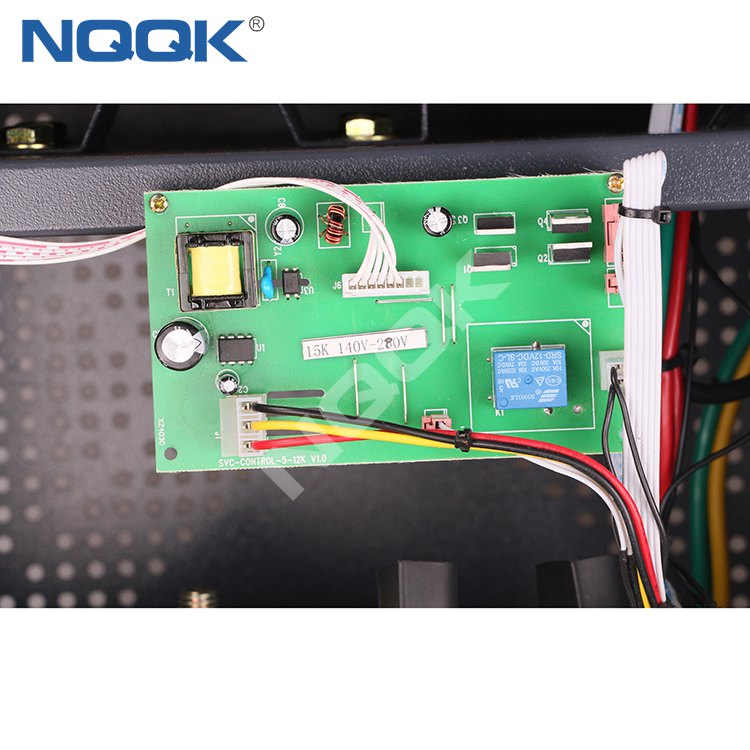

Features Description With overvoltage protection, undervoltage protection, temperature control and overload protection and other functions, wide input voltage range, high precision output voltage, PLC single-chip control module, the core components of reliable quality.



Conventional AVR-15KVA (140V-250V)
Input voltage 140V 150V 160V 180V or more 200V or more
With load power ≤6000W ≤7500W ≤9000W ≤10000W ≤12000W
Ultra-low voltage AVR-15KVA (90V-250V)
Input voltage 90V 110V 140V 160V or more 190V or more
With load power ≤3000W ≤4500W ≤6000W ≤9000W ≤11000W
Note: Regulator operating characteristics The lower the input voltage, the smaller the load power


Our Services:

1.  Prompt reply: Any inquiry or questions would be replied within 24 hours.

2.  Quality Product: Manufacture company, each of the products is tested and calibrated.

3.  Hospitality: Offer smiling service and your visiting is highly welcomed

4.  Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.



Trade Information:

Trade Terms FOB ,CIF ,CFR,EXW,DDP
Payment terms T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions 30% deposit in advance,70% balance before shipping.
Delivery time 3-7working days after deposit,2-4 working days for inventory
Packing Neutral carton,Wooden case for large size
Shipping By sea,by air and by express delivery
